Specifications

• Dimensions

  add remove
  • Length:
    2600 mm
  • Seat height, unladen:
    740 mm
  • Ground clearance:
    135 mm
  • Rake:
    26
  • Trail:
    170 mm
  • Wheelbase:
    1625 mm
  • Tyres, front specifications:
    BW 130/70B18 63H
  • Tyres, rear specifications:
    BW 180/55B18 80H
  • Fuel capacity:
    22.7 l
  • Oil capacity:
    4.0 l
  • Weight, as shipped:
    399 kg
  • Weight, in running order:
    415.94 kg
  • Luggage capacity – volume:
    4.7 cu ft (0.132 m3)
• Engine

  add remove
  • Engine:

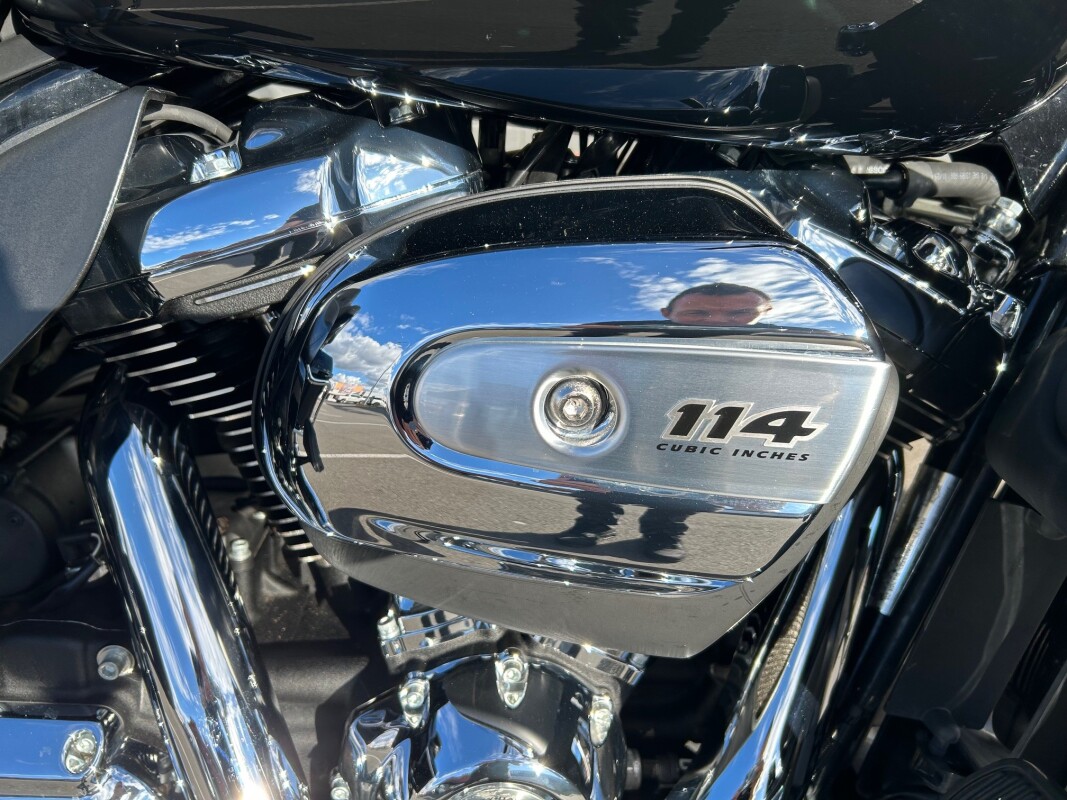

    Twin-Cooled™ Milwaukee-Eight™ 114
  • Bore:
    102 mm
  • Stroke:
    114 mm
  • Displacement:
    1868 cm³
  • Compression ratio:
    10.5:1
  • Fuel system:
    Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust:
    2-1-2 dual exhaust with tapered mufflers
• Performance

  add remove
  • Engine torque testing method:
    EC 134/2014
  • Engine torque:
    160 Nm
  • Engine torque (RPM):
    3000
  • Lean angle, right (deg.):
    32
  • Lean angle, left (deg.):
    32
  • Fuel economy testing method:
    EU 134/2014
  • Fuel economy:
    6.3 l/100 km
  • CO₂ emissions testing method:
    EU 134/2014
  • CO₂ emissions:
    146 g/km CO2
• Drivetrain

  add remove
  • Primary drive:
    Chain, 34/46 ratio
  • Gear ratios (overall) 1st:
    9.593
  • Gear ratios (overall) 2nd:
    6.65
  • Gear ratios (overall) 3rd:
    4.938
  • Gear ratios (overall) 4th:
    4
  • Gear ratios (overall) 5th:
    3.407
  • Gear Ratios (overall) 6th:
    2.875
• Chassis

  add remove
  • Wheels, optional style type:
    Gloss Black Slicer II
  • Wheels, front type:
    Slicer II cast aluminum with clear coat
  • Wheels, rear type:
    Slicer II cast aluminum with clear coat
  • Brakes, caliper type:
    32 mm, 4-piston fixed front and rear
• Electric

  add remove
  • Lights (as per country regulation), indicator:
    High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system, gear indication, battery, low fuel warning, cruise control, ABS, fog/aux lamp in
  • Gauges:
    Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
• Infotainment

  add remove
  • Infotainment system:
    Boom!™ Box GTS
  • Type:
    Full Color TFT
  • Watts per channel:
    25
  • Speakers:
    4
  • Speaker size:
    5.25 inch standard
  • Headset specifications (if equipped):
    16-64 ohms
  • AM:
    Standard
  • FM:
    Standard
  • Weather Band (WB):
    Standard
  • SD Card, Flash Drive and MP3 — via USB Connection:
    Supported
  • Languages:
    English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
  • Hands-free mobile phone — via Bluetooth:
    Standard
  • Voice Recognition Languages: Phone functions only:
    English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
  • Voice Recognition Languages: Tuner / Media / Navigation:
    English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
  • Text-to-Speech (TTS) languages:
    English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
  • Rider / passenger intercom:
    Standard
  • Vehicle information screen:
    Standard
  • USB:
    USB/MTP/iPod/iPhone
  • Bluetooth:
    Phone/Media Supported
