Specifications

• Dimensions

  add remove
  • Length:
    2320 mm
  • Seat height, unladen:
    680 mm
  • Ground clearance:
    125 mm
  • Rake:
    30
  • Trail:
    157 mm
  • Wheelbase:
    1630 mm
  • Tyres, front specifications:
    100/90B19,57H,BW
  • Tyres, rear specifications:
    150/80B16,77H,BW
  • Fuel capacity:
    13.2 l
  • Oil capacity:
    4.2 l
  • Weight, as shipped:
    286 kg
  • Weight, in running order:
    297.10 kg
• Engine

  add remove
  • Engine:
    Milwaukee-Eight® 114
  • Bore:
    102.0064 mm
  • Stroke:
    114.3 mm
  • Displacement:
    1868 cm³
  • Compression ratio:
    10.5:1
  • Fuel system:
    Electronic Sequential Port Fuel Injection (ESPFI)
  • Exhaust:
    2-into-2 offset shotgun; catalyst in muffler
• Performance

  add remove
  • Engine torque testing method:
    EC 134/2014
  • Engine torque:
    155 Nm
  • Engine torque (RPM):
    3250
  • Lean angle, right (deg.):
    28.5
  • Lean angle, left (deg.):
    28.5
  • Fuel economy testing method:
    EU 134/2014
  • Fuel economy:
    5.5 l/100 km
  • CO₂ emissions testing method:
    EU 134/2014
  • CO₂ emissions:
    128 g/km CO2
• Drivetrain

  add remove
  • Primary drive:
    Chain, 34/46 ratio
  • Gear ratios (overall) 1st:
    9.311
  • Gear ratios (overall) 2nd:
    6.454
  • Gear ratios (overall) 3rd:
    4.793
  • Gear ratios (overall) 4th:
    3.882
  • Gear ratios (overall) 5th:
    3.307
  • Gear Ratios (overall) 6th:
    2.79
• Chassis

  add remove

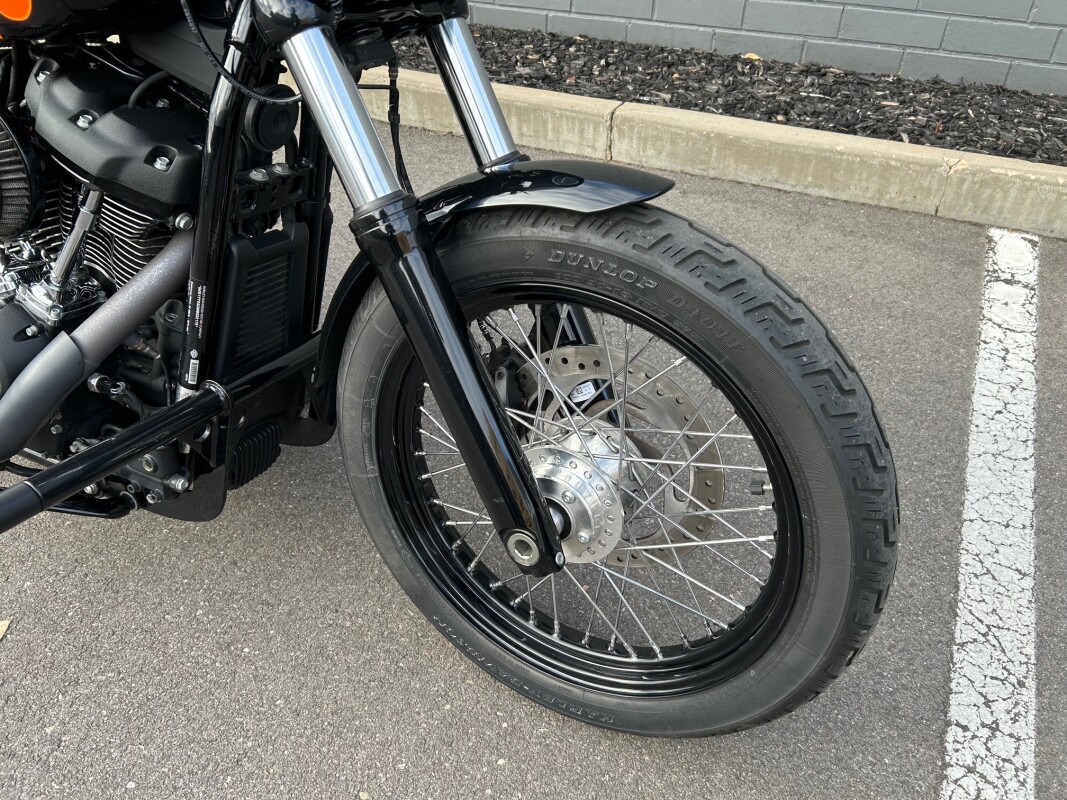

  • Wheels, front type:
    Gloss Black, Steel Laced
  • Wheels, rear type:
    Gloss Black, Steel Laced
  • Brakes, caliper type:
    4-piston fixed front and 2-piston floating rear
• Electric

  add remove
  • Lights (as per country regulation), indicator:
    High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel
  • Gauges:
    2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
